Enhancing Cement Kiln Efficiency With AI
Introduction
Cement production is a critical component of the construction industry, and it is responsible for creating one of the most essential building materials. The global cement industry plays a pivotal role in the world economy, contributing a remarkable $423.24 billion to the global GDP as of 2032. The efficiency of the cement kiln plays a crucial role in determining the overall productivity, energy consumption, and environmental impact of cement manufacturing. Traditional monitoring methods often fall short of providing real-time insights and proactive solutions. However, the advent of computer vision AI technology is transforming kiln operations, offering enhanced monitoring, predictive maintenance capabilities, and optimization processes. Vision AI is revolutionizing cement kiln efficiency, highlighting its applications, benefits, and real-world examples.
Kiln Process and Its Energy consumption in Cement Plants
The cement production process is highly energy-intensive, particularly in the kiln, where a substantial portion of fuel is consumed. The cement kiln is divided into several zones, include the pre-heater, calciner, rotary kiln, and cooler, each playing a critical role in the transformation of raw materials into clinker, the primary component of cement.
Pre-heater: The pre-heater is designed to heat the cement raw material before it enters the rotary kiln. It typically uses hot gases from the kiln to preheat the material, reducing the need for additional fuel. The pre-heater zone is energy-intensive but essential for optimizing fuel usage in the subsequent stages.
Calciner: The calciner is responsible for the chemical transformation of limestone into lime (calcium oxide), a process that requires significant heat. Approximately 20-30% of the total coal used in the kiln is distributed to the calciner to facilitate this reaction. This is crucial for ensuring the kiln efficiency, as the calciner helps reduce the load on the rotary kiln by pre-heating and partially calcining the raw material.

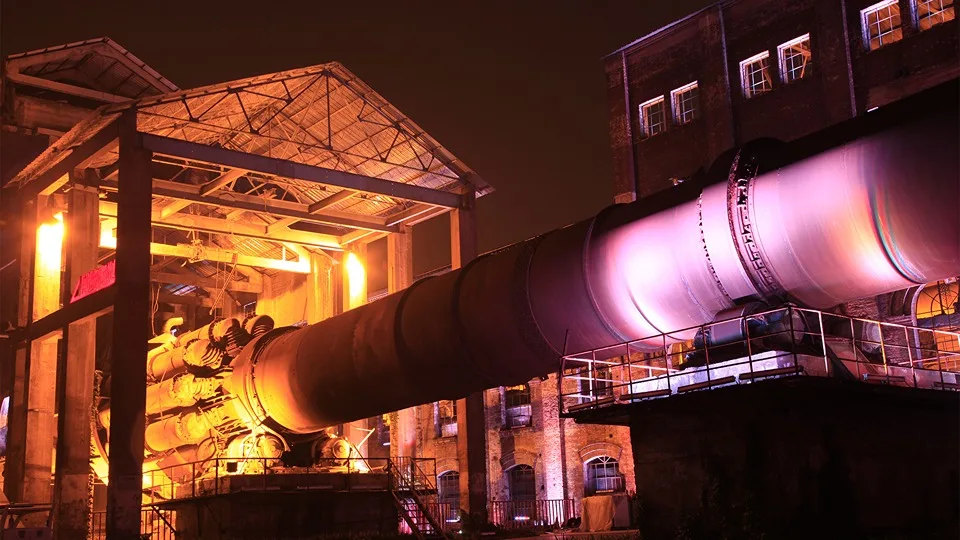

Rotary Kiln: The rotary kiln is the heart of the cement manufacturing process, where the cement raw materials undergoes intense heat treatment. Fuel is introduced directly into the rotary kiln to maintain the required high temperatures. The amount of fuel used in this zone is directly related to the kiln’s operating conditions, including temperature control and material composition.
Cooler: After the clinker is formed in the rotary kiln, it moves to the cooler, where it is rapidly cooled to stabilize the material and prepare it for grinding. The cooler helps recover heat from the clinker and returns it to the pre-heater to improve overall energy efficiency.
Excess coal feeding lead to significant inefficiencies, especially in the rotary kiln and calciner. Overfeeding coal results in overheating, which drives up kiln energy consumption, increases emissions, and can cause equipment damage. Proper fuel distribution across the kiln zones is essential for maintaining temperature control and ensuring optimal fuel usage.
Understanding Cement Kiln Operations
Cement kilns are essential components of cement manufacturing, they are large, cylindrical vessels designed to heat raw materials such as, primarily limestone, clay, and various additives. This heating process transforms these materials into clinker, which is the primary component of cement. Operating at high temperatures that can reach up to 1,500°C, these kilns demand precise control over various operational parameters, including temperature, feed rate, and fuel usage. Maintaining stability in these parameters is critical. Any fluctuations can result in inefficiencies that negatively impact the cement production process.
The efficiency of kiln operations directly affects both the quality of the final product and the overall energy consumption of the cement plant. Inconsistent temperature control can lead to incomplete reactions and, consequently, inferior clinker quality. Additionally, variations in feed rates and fuel usage can increase operational costs, resulting in higher fuel consumption and lower productivity. Therefore, effective monitoring and control systems are vital for optimizing kiln performance, ensuring that the cement manufacturing process remains both efficient and sustainable.
Common Challenges in Cement Kiln Operations
Cement kiln operations are complex and require meticulous management to ensure optimal performance. Several challenges can impede efficiency, product quality, and operational safety.
Here are common challenges faced in cement kiln operations.
Fluctuating Raw Material and Fuel Quality
Variations in the composition of cement raw materials such as limestone and coal directly impact combustion efficiency. The inconsistency in raw material quality, including the kiln feed, can lead to imbalanced kiln conditions, affecting the stability of the entire process. Manual adjustments made to address this issue often fail to optimize the burning conditions, leading to inefficiencies and potential disruptions in production. Inadequate control over the kiln feed can result in improper fuel-to-material ratios, further complicating the combustion process and reducing overall plant efficiency.
Temperature Variability
Overfeeding coal is a common issue in cement kilns, occurring up to 10-20% of the time resulting in overheating of the cement kiln , which increases energy consumption and accelerates the wear on refractory linings. The excess heat and fuel waste raise maintenance costs and lead to longer downtimes, ultimately affecting overall cement plant operations. Maintaining a consistent temperature throughout the cement kiln is crucial for producing high-quality clinker. Temperature fluctuations can arise from inconsistent fuel quality, variations in cement raw material composition, or ineffective kiln system. Such variability leads to inefficient clinker production, resulting in either underburnt or overburnt clinker. Inconsistent temperatures in cement kiln may further driving up operational costs.
Fuel Efficiency
Fuel efficiency is a critical factor in the economics of cement production. Inefficient combustion processes can lead to higher fuel consumption, raising production costs significantly. In addition, burning alternative fuels, while potentially cost-effective, can introduce variability in combustion characteristics, making it challenging to optimize fuel use. This inefficiency kiln in cement plant not only impacts the bottom line but also contributes to higher greenhouse gas emissions, posing environmental challenges that manufacturers must address.
Kiln Overheating
Overheating in the cement kiln can lead to severe consequences, including damage to the kiln structure and kiln refractory lining. Excessive temperatures can compromise the integrity of the kiln and necessitate costly repairs or replacements. Additionally, overheating can cause increased maintenance costs and unplanned downtimes, disrupting production schedules and negatively impacting the overall efficiency of the plant. Proper kiln monitoring systems are vital to prevent overheating and maintain optimal kiln performance.
Kiln Refractory Wear
Kiln refractory wear is primarily caused by thermal cycling, chemical reactions with raw materials, mechanical stress from vibrations, inconsistent temperature distribution, and poor operational practices. These issues lead to thermal shock, chemical erosion, and structural damage to the refractory lining, which can compromise its insulating properties and protective function. The impact of refractory wear results in reduced kiln efficiency, increased energy consumption, and diminished cement clinker due to incomplete reactions. Moreover, excessive wear can lead to costly unplanned maintenance, production downtimes, and potential safety risks if the integrity of the kiln structure is compromised.
Unplanned Downtime
Unplanned downtime in cement kiln operations is primarily caused by equipment wear and tear, stemming from the continuous strain on components like bearings and refractory linings. This wear can lead to mechanical failures, especially when maintenance is inadequately planned and real-time monitoring is lacking. The impact is significant, resulting in production losses, increased operational costs, and potential quality issues that ultimately affect profit margins and customer satisfaction. Addressing these causes is crucial for improving the kiln operation reliability and efficiency.
Human Error and Operational Inconsistencies
The reliance on human operators for continuous monitoring in a 24/7 environment is prone to error. Operators may overlook early signs of inefficiencies, and manual adjustments can inadvertently introduce inconsistencies into the process. Without real-time data and automated insights, operators face significant challenges in making timely decisions, leading to operational inefficiencies, increased downtime, and reduced productivity.
The Role of Vision AI in Cement Kiln Efficiency
Vision AI employs advanced image processing and machine learning algorithms to analyze visual data from cameras installed around the cement factory kiln. By leveraging this technology, cement manufacturers can gain unprecedented insights into kiln monitoring and kiln optimization, leading to enhanced efficiency and productivity.
Key Benefits of Vision AI in Cement Plant Kiln Operations
Real-Time Monitoring: Vision AI enables continuous surveillance of kiln operations, allowing for immediate detection of anomalies and deviations from optimal performance.
Predictive Insights: By analyzing historical data and current operational conditions, Vision AI can predict potential issues, enabling proactive maintenance and reducing the risk of unplanned downtime.
Improved Process Control: AI algorithms can optimize key variables in real-time, such as temperature and fuel flow, based on visual data, leading to more efficient combustion processes.
Enhanced Safety: Vision AI can monitor safety compliance, ensuring that personnel adhere to safety protocols and minimizing the risk of accidents.
360-Degree Accessibility and Remote Monitoring : Vision AI platform offers remote access via PC browsers, mobile apps, and WhatsApp alerts, allowing cement plant managers to monitor multiple kilns in real-time across various locations. This reduces reliance on on-site personnel
Key AI Applications in Cement Kiln Optimization
AI-powered platforms are revolutionizing cement kiln operations by analyzing real-time data, predicting potential issues, and automating corrective actions. The advanced capabilities of AI in kiln optimization not only ensure smoother operations but also enhance plant efficiency and sustainability. Here’s how AI is transforming kiln management:
Kiln Monitoring and State Prediction

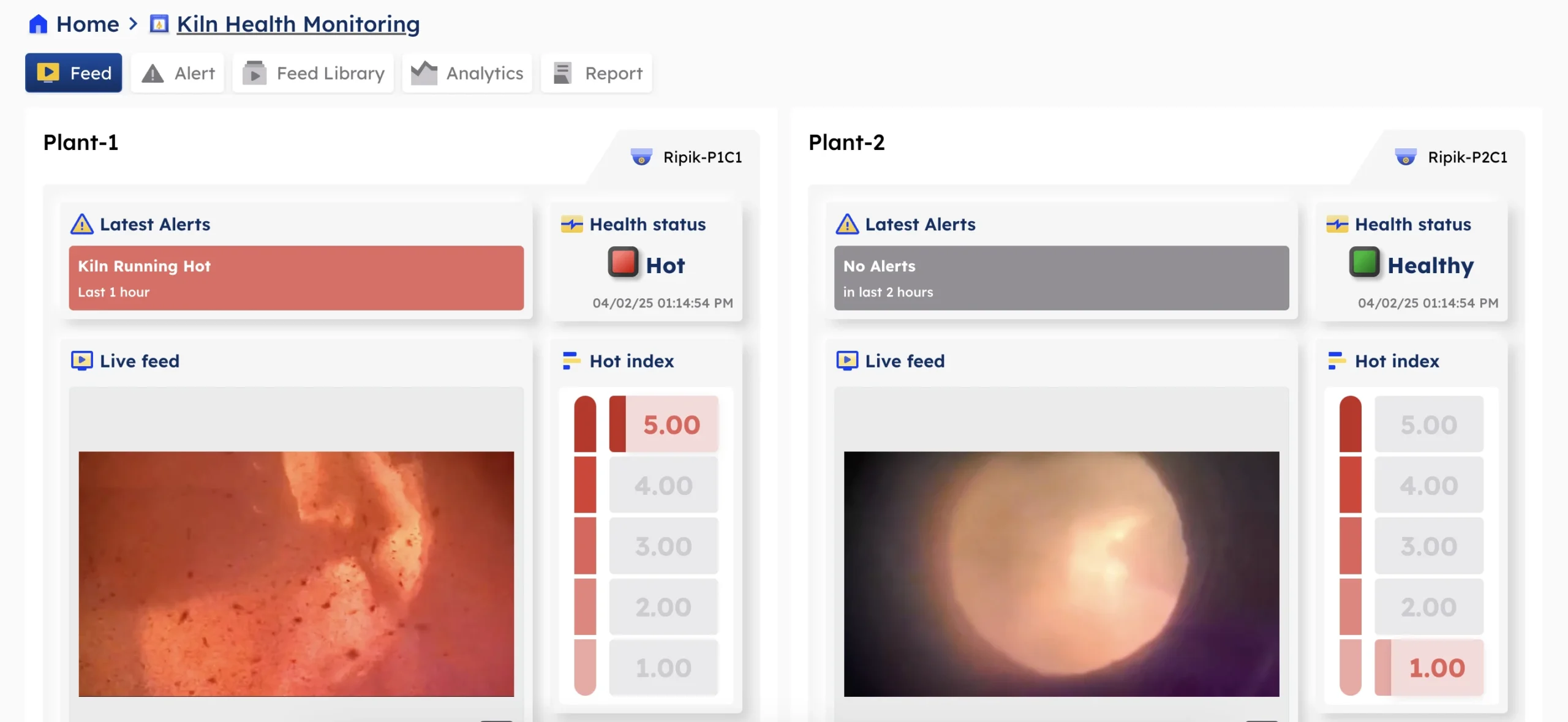

AI continuously monitors kiln conditions in real-time, categorizing them into distinct states to ensure optimal performance in the kiln in the cement industry. When the rotary cement kiln is operating in a Healthy state, it means that all systems are functioning within ideal parameters, leading to smooth and efficient operation. If the system detects potential issues, it flags the kiln as Hot, indicating possible overheating due to excessive coal feeding, which can lead to inefficiency and increased wear. Alternatively, if the kiln is categorized as Dusty, it signals poor combustion, resulting in excessive dust formation and energy loss. By continuously monitoring and ensuring the kiln stays in its Healthy state, AI helps reduce inefficiencies, preventing issues before they become significant, and ultimately improving overall performance and operational stability in rotary cement kilns.

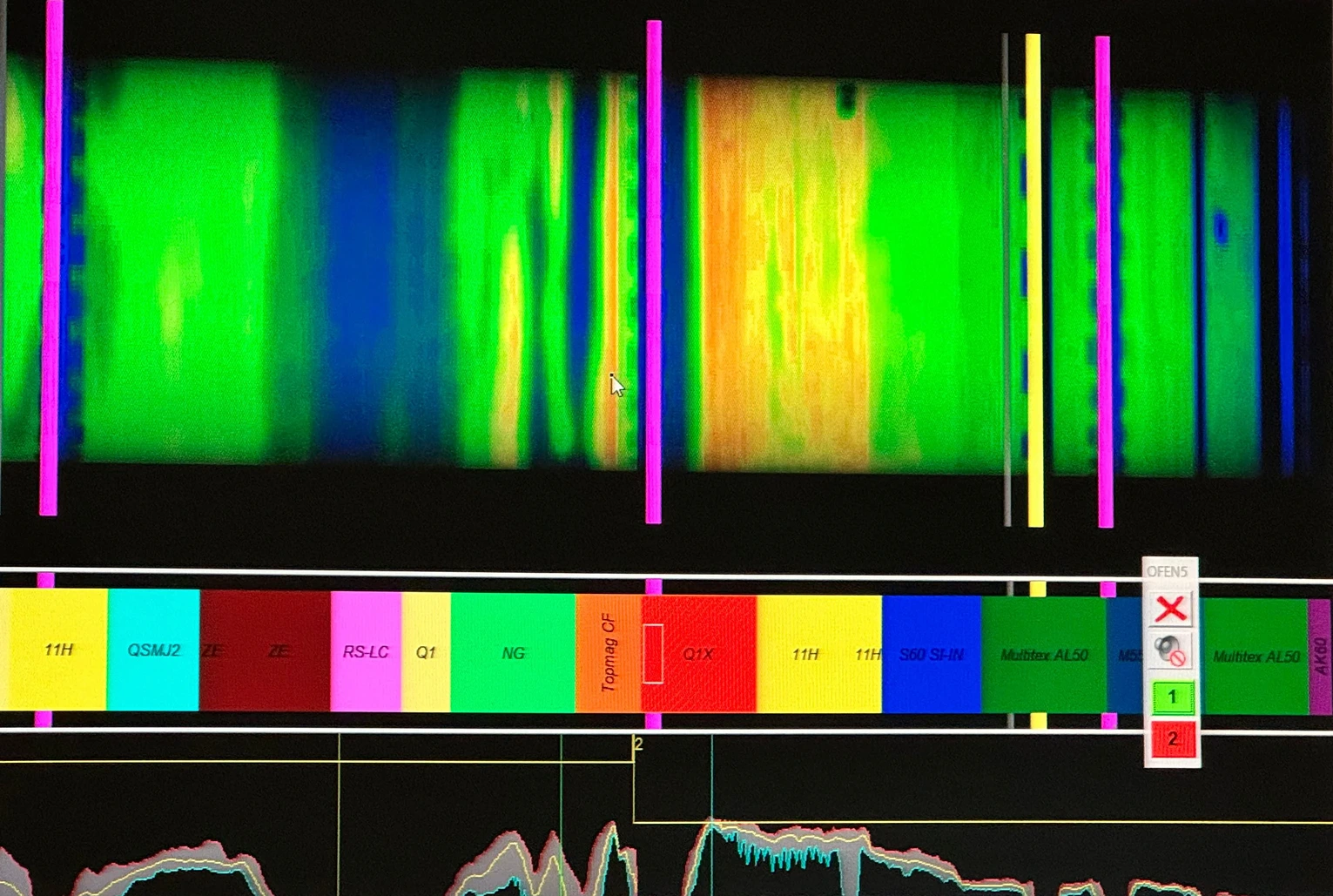

Real-time Kiln Temperature Monitoring
Temperature fluctuations in cement kilns could disrupt thermal stability, resulting in inconsistent clinker quality, potential overheating, and high energy consumption. These thermal imbalances often lead to inefficient combustion processes and refractory stress in cement kiln operations, increasing operational costs.
AI-powered kiln monitoring systems provide real-time temperature monitoring throughout the kiln in cement plants, ensuring consistent temperatures. This real-time temperature monitoring system supports cement plant process optimization by immediately detecting and addressing any deviations, thereby maintaining cement kiln efficiency and reducing energy waste. This advanced level of process control enhances cement kiln efficiency, minimizes energy waste, and optimizes combustion dynamics, contributing to stable and reliable cement kiln operations.
Cement Raw Materials Analysis
Inconsistent feed material composition entering the cement kiln disrupts burn rate, heat transfer, and clinker quality, reducing thermal efficiency. AI-driven kiln optimization enables real-time monitoring of chemical composition, granulometry analysis, and material moisture content, ensuring consistent raw material quality. Variability in limestone, clay, and additives, along with moisture fluctuations, impacts combustion stability. Excess moisture increases energy demand for drying, leading to inefficient fuel use. Vision AI systems analyze and compensate for these variations, optimizing kiln conditions to enhance process stability and efficiency.
Advanced AI-powered solutions integrate vision AI, infrared-based monitoring, and automated feed adjustments to enable real-time material moisture content and particle size analysis. By continuously adjusting feed composition Vision systems improve clinker uniformity, enhance cement raw material processing, and maximize fuel efficiency, making cement manufacturing more stable, cost-effective, and sustainable.
Hotspot Detection
Localized hotspots within the kiln can result in uneven heat distribution, causing thermal shock and damage to the kiln refractory of cement plant. If these hot spots are left undetected, these hotspots lead to premature refractory failure, unplanned shutdowns, and increased maintenance costs, severely affecting the productivity and efficiency of kiln operations in the cement industry.
Computer vision AI powered thermal imaging systems integrated into the kiln monitoring systems detect thermal anomalies in real time. These systems utilize high-resolution infrared cameras and machine learning platform to identify the formation of hotspots before they can cause serious damage. Early detection enables preemptive cooling measures and scheduled maintenance, thereby extending the lifespan of the cement kiln refractory, reducing maintenance costs and improving the operational reliability and efficiency of cement kiln operations. Real-time kiln refractory monitoring extends Kiln refractory life by 30% and reducing unplanned downtime.
Real-Time Kiln Flame Monitoring
The combustion flame inside the cement kiln is a critical indicator of fuel-air balance and combustion efficiency. Improper flame control, including irregular flame length and intensity, results in incomplete combustion, increased fuel consumption, and the formation of pollutants. This inefficiency increases operational costs and environmental impact in cement kiln operations.
AI-based real-time kiln flame monitoring systems continuously capture flame characteristics such as luminosity, shape, and heat distribution through advanced imaging and data analytics. AI algorithms interpret this data to optimize the burner settings in real time, ensuring stable combustion conditions. By fine-tuning parameters like air-fuel ratio and fuel feed rate, the system minimizes fuel consumption, reduces NOx emissions, and enhances the overall efficiency of the cement kiln.
Automated Coal Feed Optimization
When AI platform detects overheating in the rotary cement kiln, it automatically cuts off the coal feed and adjusts the coal dosage in real-time to maintain a balanced temperature. This proactive intervention is a critical component of kiln optimization, as it prevents thermal shock to the kiln structure, which could otherwise lead to damage and costly repairs. By adjusting the coal feed based on real-time conditions, AI reduces fuel wastage, ensuring that only the necessary amount of fuel is used. This not only enhances cement kiln optimization but also boosts kiln operations efficiency, leading to cost savings and supporting more sustainable operations by minimizing the environmental impact of excess fuel consumption.
Kiln Fuel Consumption
Fuel costs represent a substantial portion of the operating expenses in cement factory kilns, and inefficient fuel usage leads to elevated operational costs, higher emissions, and decreased process sustainability. Inaccurate fuel combustion can also negatively impact clinker quality and overall cement kiln efficiency.
AI systems optimize cement kiln fuel consumption by analyzing combustion data and operational parameters in real time. These systems continuously adjust the burner settings, air-fuel ratios, and material feed rates to achieve optimal combustion conditions, thereby minimizing fuel wastage. The result is a significant reduction in specific energy consumption and greenhouse gas emissions, enhancing both the cost-effectiveness and environmental performance of the cement kiln operations.
Predictive Maintenance
Traditional time-based maintenance strategies often fail to predict critical equipment failures in cement kilns, resulting in unplanned outages and expensive emergency repairs. This reactive approach leads to reduced productivity and higher maintenance costs, compromising the overall kiln operations efficiency.
AI-driven predictive maintenance leverages historical sensor data and real-time condition monitoring from the cement kiln to forecast potential equipment failures. Machine learning models analyze key performance indicators such as vibration, temperature, and pressure to detect early warning signs of wear or malfunction. By enabling maintenance teams to address issues before they cause downtime, predictive maintenance enhances the reliability of cement kiln operations, reduces unplanned stoppages, and lowers maintenance costs, improving overall operational efficiency.
The Role of Vision AI in Cement Kiln Efficiency
In cement manufacturing, where energy costs account for 75% of the budget, kiln optimization proved groundbreaking reducing energy costs by an astonishing 5%.
Unveil the success story of an Indian Cement titan overcoming fuel challenges with our advanced Vision AI technology for optimized kiln health for minimizing downtime situations. One of the prominent entities in the Indian cement industry, this company holds a distinguished position within the construction sector. With a deep-vetted accommodation on energy costs, the plant strongly focuses on cost competitiveness. They understand how crucial it is to sustain economic production by meeting KRAs to propose optimal kiln health optimization with reduced downtime for sustainable cement production.
Problem
The challenges faced by the cement facility head were multifaceted, with a significant concern arising during dusty and hot kiln runs leading to downtimes. It was found that there was an excessive coal usage of at least 10%, or three tons per hour, at these times. The fact that the kiln ran under hot temperatures for about 30% of the time made the problem worse. The overuse of coal throughout these stages not only reduced operational effectiveness but also increased resource consumption, which presented a significant barrier to maximum output.
Solution

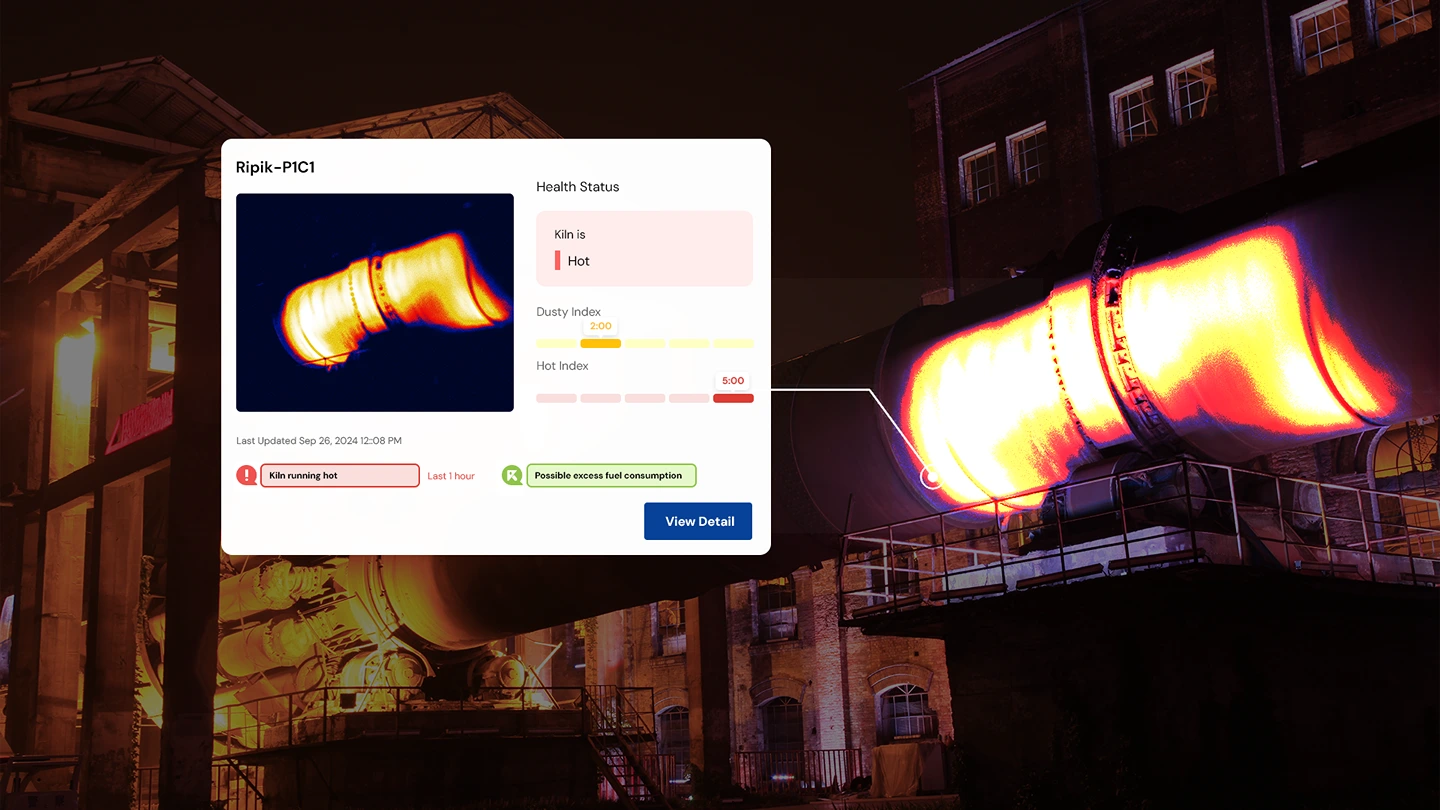

Our patented AI-driven industrial solution, Ripik Vision can operate in real-time and provide instant identification of the cement kiln’s status, categorizing it as hot, dusty or, ideally, healthy. The primary objective is to improve the operator’s control of maintaining the kiln in a healthy state for longer sessions.
Conclusion
The integration of Vision AI into cement kiln operations presents a transformative opportunity for manufacturers to enhance efficiency, reduce costs, and improve product quality. By addressing common challenges such as temperature variability, fuel efficiency, and maintenance downtime, Vision AI offers a comprehensive solution for optimizing cement production processes. As the industry continues to embrace digital transformation, manufacturers must consider adopting Vision AI technology to stay competitive and meet the growing demand for sustainable and efficient kiln in the cement industry
